Replacement Hitachi / Lenz PCB Drilling Spindle Air Bearing Spindle

Place of Origin : China

Brand Name : KLKJ

Certification : ISO9001:2008

Model Number : KL200L

MOQ : 1PC

Price : Negotiation

Packaging Details : STANDARD BROKEN-RESISTANCE PACKAGE

Delivery Time : 10-25 WORKING DAYS

Payment Terms : T/T;L/C;WESTERN UNION

Supply Ability : 500SET/MONTH

Contact Now


Compatible D1822 200,000RPM KL200L PCB Drilling Spindle


Quick Detail:

MODEL

REPLACE FOR

DESCRIPTION

Application

Machine reference

KL200L

D1822

SPEED RANGE:

20,000 - 200,000 rpm

Ø6.35mm-0.05mm

precision drilling

Static Run Out:<2µm

Dynamic Run Out:<8µm

Vibration:0.5 MM/S

KLINGINBERG

PLURITEC

HITACHI

LENZ

SCHMOLL

ANDERSON ….




PRODUCT DESCRIPTION

KL200L high frequency spindle replace for WW D1822 Full Range from 20,000 to 200,000 rpm, air bearing type in long life, spindle weight 4.3kg with COLLET size Ø1/8” and body size Ø 61.9

Max power: 0.9KW
Air Pressure: 6.0 -6.5kgf/cm²
Coolant: Water oil
Fixed voltage: 215V
Fixed current: 4A
FREQUENCY (HZ): 334-3570
PTC Or NTC SENSOR For choose (Data pl. inquiry)


Competitive Advantage:

Low Static
Low Dynamic RUN OUT
Stable character and long life
Suitable for precision drilling
Air bearing type offer Greater Precision, High Speed , Increased Tool Life, Improved Surface Finish, Long Bearing Life, Low Thermal Growth, Lack of Maintenance, Large Load Capacity , Reduced Vibration , Cleanliness.

APPLICATION :

PRINT CIRCUIT BOARD PRECISION DRILLING
HOLE RANGE: Ø6.35mm-0.05mm
MACHINE REFERENCE:KLINGINBERG PLURITEC ；HITACHI ；LENZ ；ANDERSON;SCHMOLL ….



SPECIFICATION:

Coolant water temperature

20+2

Static runout

<2µm

Dynamic runout

<8µm

Collet torque(N.cm)

>15.2( 1/8”)

Vibration

0.5MM/S

Temperature sensor ohms KΩ

R=0.10±5% AT 25℃

Open air pressure

<5.0kg/cm²

Close air pressure

>2.5 kg/cm²

Coolant water flux

>0.8(L/min)

Coolant oil flux

>1.5(L/min)

Air consume flux at 20krpm

58(L/min)

Radial load

6.0kgf




Spindle outline drawing


Replacement Hitachi / Lenz PCB Drilling Spindle Air Bearing Spindle

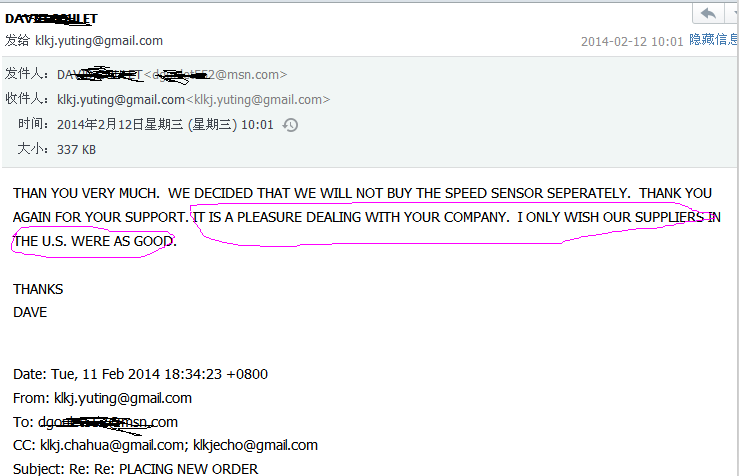

Spindle Quality and Service Comment from customer

Replacement Hitachi / Lenz PCB Drilling Spindle Air Bearing Spindle
